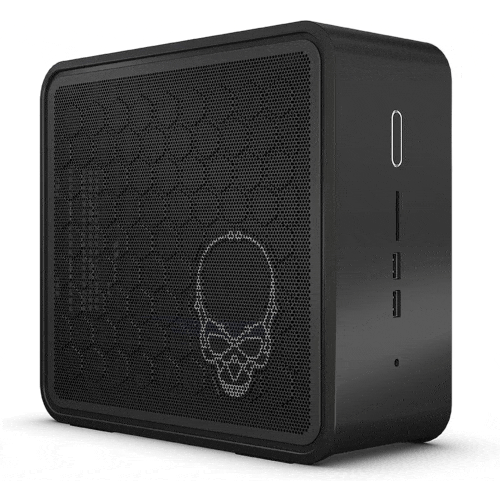

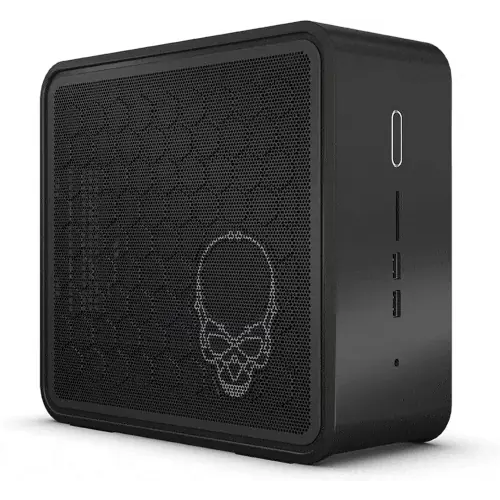

The Intel NUC 9 Extreme Kit is a compact “barebones” desktop that uses Intel’s Compute Element idea: the CPU, memory slots, and core I/O live on a modular card, inside a small chassis that can still accept a desktop discrete GPU. It’s aimed at builders who want big performance in a tiny footprint.
What the NUC 9 Extreme Kit actually is
Think of it like a mini desktop “shell” + a pre-installed Compute Element (CPU + memory slots + key I/O), with room to add your own RAM, storage, OS, and (optionally) a discrete GPU. The Extreme versions are sold as NUC9i5QNX, NUC9i7QNX, and NUC9i9QNX.
CPU choices (Extreme models)
- NUC9i9QNX: Intel® Core™ i9-9980HK (8-core)
- NUC9i7QNX: Intel® Core™ i7-9750H (6-core)
- NUC9i5QNX: Intel® Core™ i5-9300H (4-core)
Why people still love this NUC generation
- True discrete GPU support in a super compact chassis (with strict size/power limits).
- Upgradeable feel because the Compute Element concept makes the “core” more modular than typical mini PCs.
- Great for small setups where a full tower is too big but you still want desktop-class graphics.
What you need to build a complete system
Most listings are the kit, not a finished PC. Expect to add the core parts yourself.
GPU compatibility: the rules that matter
The NUC 9 Extreme supports a PCIe x16 discrete GPU, but it’s not an “anything goes” case. Intel documents strict add-in card limits.
1) Length limit: up to 202mm
Intel’s add-in card table lists a maximum accepted length of 202mm for PCIe add-in cards.
2) Dual-slot cards block the x4 slot
Intel notes that when a dual-slot GPU is used in the PCIe x16 slot, the PCIe x4 slot becomes inaccessible.
3) Power limit: up to 225W (slot + connector)
The maximum supported add-in power is listed as 225W total (75W from the slot + up to 150W from the PCIe power connector).
Memory & performance expectations
The kit supports two SO-DIMM slots, dual-channel operation, and up to 64GB total memory. Supported DDR4 speeds include 2133/2400/2666 MHz, and Intel lists XMP support on the i9 and i7 Extreme versions.
- Gaming: Most builds feel great with 16–32GB (depending on titles and background apps).
- Creator work: 32–64GB helps if you edit large media files or run VMs.
- Best feel upgrade: Dual-channel RAM + fast NVMe makes the system feel “snappy” immediately.
FAQ
Does the Intel NUC 9 Extreme Kit come with RAM or an SSD?
Typically, it’s sold as a kit that requires your own memory and storage. Intel’s user guide states these SKUs have no pre-installed SSDs. :contentReference[oaicite:28]{index=28}
What GPUs fit in the NUC 9 Extreme?
Intel documents a maximum add-in length of 202mm and a maximum supported add-in power of 225W, plus notes about slot access when using dual-slot cards. :contentReference[oaicite:29]{index=29}
What connectivity does it have?
Platform coverage commonly highlights features like two Thunderbolt 3 ports, Wi-Fi 6, Bluetooth 5, dual Gigabit LAN, and HDMI 2.0. :contentReference[oaicite:30]{index=30} (Exact port layout can vary by model/region—always confirm on the listing you’re buying.)
Is this better than building a mini-ITX PC?
It depends. Mini-ITX can be more flexible for future CPU upgrades, while the NUC 9 Extreme shines when you want a compact, integrated platform with GPU support and a clean “kit” build experience.
Bottom line
The Intel® NUC 9 Extreme Kit is for people who want a compact desktop that still supports a real GPU—ideal for small desks, living-room PCs, LAN setups, and tidy creator rigs. Just go in with a builder mindset: plan your RAM, NVMe storage, and especially your GPU size/power around Intel’s limits.
